Kuhn
Special steel Borodur®
Bellota Agrisolutions has a wide range of agricultural spare parts for Kuhn plows. From ploughshares, moldboards, tips, racks and ailerons. The Kuhn ploughs are very well known on the market for their robustness and reliability. The moldboard plow is one of the most popular pieces of farming equipment for intense tillage work to lift up soil, bury organic waste, eliminate weeds and increase the porosity and water storage capacity.
KUHN CLASICOS2287-A
F Articles manufactured upon order
2316
I Left
D Right
F Articles manufactured upon order
2329
F Articles manufactured upon order
2346
I Left
D Right
F Articles manufactured upon order
KUHN CLASICO V1385
I Left
D Right
D Articles manufactured upon order
1383
I Left
D Right
D Articles manufactured upon order
1393
I Left
D Right
D Articles manufactured upon order
1733-1734
I Left
D Right
F Articles manufactured upon order
1738-1739
I Left
D Right
F Articles manufactured upon order
2329
D Articles manufactured upon order
2375
I Left
D Right
D Articles manufactured upon order
KUHN ZD,ZU,ZF1809
I Left
D Right
F Articles manufactured upon order
2287-A
| O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
| 278076/77 | 2287-A | 10 | 4600 | 200 | 653 | 110 | 1199B | M12 |
AR Type long
2316
| O. Ref. | Ref. | Grs. | B |
| 763008 | 2316 D | 2100 | 300 |
| 763009 | 2316 I | 2100 | 300 |
D Right
F Articles manufactured upon order
Not reinforced
2329
2329-B
2329-C
| O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
| 223122 | 2329 | 10 | 3850 | 200 | 452 | 110 | 1199D | M12 |
| 761108 | 2329 B | 10 | 4650 | 200 | 550 | 110 | 1199D | M12 |
| 279140 | 2329 C | 10 | 5500 | 200 | 550 | 130 | 1199D | M12 |
Reversible
2346
| O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
| 279138 | 2346 D | 10 | 900 | 600 | 155 | 76 | 1199D | M12 |
| 279139 | 2346 I | 10 | 900 | 600 | 155 | 76 | 1199D | M12 |
D Right
F Articles manufactured upon order
Classic
1385
1385-CP
| Ref. | O. Ref. | C | Grs. | A | B | A | B | C | E | M | D |
| 1385 D CP DURATOP | 622164 SUPER MARATHON | 22 | 2400 | 450 | 1199D | M12 | |||||
| 1385 I CP DURATOP | 622165 SUPER MARATHON | 22 | 2400 | 450 | 1199D | M12 | |||||
| 1385 D | 622128 MARATHON | 12 | 1850 | 300 | 300 | 85 | 1199D | M12 | |||
| 1385 I | 622129 MARATHON | 12 | 1850 | 300 | 300 | 85 | 1199D | M12 |
D Right
D Articles manufactured upon order
CP DURATOP: Point with tungsten carbide
1383
| Ref. | O. Ref. | C | Grs. | A | B | A | B | C | E | M | D |
| 1383-14 D | 622134 | 12 | 5500 | 100 | 587 | 158 | 395 | 1199B | M14 | ||
| 1383-14 I | 622135 | 12 | 5500 | 100 | 587 | 158 | 395 | 1199B | M14 | ||
| 1383-16 D | 622136 | 12 | 6200 | 100 | 671 | 158 | 395 | 1199B | M14 | ||
| 1383-16 I | 622137 | 12 | 6200 | 100 | 671 | 158 | 395 | 1199B | M14 |
D Right
D Articles manufactured upon order
1393
1393
| Ref. | O. Ref. | C | Grs. | A | B | A | B | C | E | M | D |
| 1393-14 D | 580884 | 12 | 5500 | 80 | 587 | 158 | 395 | 1199B | M14 | ||
| 1393-14 I | 580885 | 12 | 5500 | 80 | 587 | 158 | 395 | 1199B | M14 | ||
| 1393-16 D | 580886 | 12 | 6200 | 80 | 671 | 158 | 395 | 1199B | M14 | ||
| 1393-16 I | 580887 | 12 | 6200 | 80 | 671 | 158 | 395 | 1199B | M14 |
D Right
D Articles manufactured upon order
1733-1734
1733 - 1734
| Ref. | O. Ref. | C | Grs. | A | B | E | M |
| 1734 D | 619060 | 7 | 1360 | 198 | 251 | 1199B | M12 |
| 1734 I | 619061 | 7 | 1360 | 198 | 251 | 1199B | M12 |
| 1733-1 D | H0404650 / 617100 | 10 | 3660 | 868 | 60 | 1199B | M12 |
| 1733-1 I | H0404660 / 617101 | 10 | 3660 | 868 | 60 | 1199B | M12 |
| 1733-2 D | H0404670 / 617102 | 10 | 4360 | 955 | 60 | 1199B | M12 |
| 1733-2 I | H0404680 / 617103 | 10 | 4360 | 955 | 60 | 1199B | M12 |
| 1733-3 D | H0404690 / 617104 | 10 | 3420 | 762 | 60 | 1199B | M12 |
| 1733-3 I | H0404700 / 617105 | 10 | 3420 | 762 | 60 | 1199B | M12 |
| 1733-4 D | H0404710 / 617106 | 10 | 3130 | 569 | 102 | 1199B | M12 |
| 1733-4 I | H0404720 / 617107 | 10 | 3130 | 569 | 102 | 1199B | M12 |
D Right
F Articles manufactured upon order

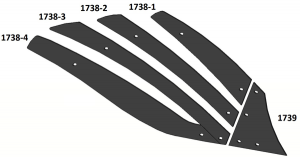

1738-1739
1738-1739
| Ref. | O. Ref. | C | Grs. | B | A | B | E | M |
| 1739-D | H0403520 | 7 | 2250 | 250 | 238 | 304 | 1199B | M12 |
| 1739-I | H9403530 | 7 | 2250 | 250 | 238 | 304 | 1199B | M12 |
| 1738-1-D | H0403180 | 10 | 3850 | 200 | 558 | 125 | 1199B | M12 |
| 1738-1-I | H0403190 | 10 | 3850 | 200 | 558 | 125 | 1199B | M12 |
| 1738-2-D | H0403200 | 10 | 4100 | 100 | 770 | 83 | 1199B | M12 |
| 1738-2-I | H0403210 | 10 | 4100 | 100 | 770 | 83 | 1199B | M12 |
| 1738-3-D | H0403220 | 10 | 4600 | 100 | 955 | 85 | 1199B | M12 |
| 1738-3-I | H0403230 | 10 | 4600 | 100 | 955 | 85 | 1199B | M12 |
| 1738-4-D | H0403240 | 10 | 6400 | 100 | 995 | 148 | 1199B | M12 |
| 1738-4-I | H0403250 | 10 | 6400 | 100 | 995 | 148 | 1199B | M12 |
D Right
F Articles manufactured upon order
2329
2329-B
2329-C
| Ref. | O. Ref. | C | Grs. | A | B | A | B | C | E | M | D |
| 2329 B | 761108 | 10 | 4650 | 200 | 550 | 110 | 1199D | M12 | |||
| 2329 C | 279140 | 10 | 5500 | 200 | 550 | 130 | 1199D | M12 |
2375
2375
| Ref. | O. Ref. | C | Grs. | A | B | A | B | C | E | M | D |
| 2375 D | 761110 | 10 | 825 | 1000 | 155 | 108 | 1199D | M12 | 50 | ||
| 2375 I | 761111 | 10 | 825 | 1000 | 155 | 108 | 1199D | M12 | 50 |
D Right
D Articles manufactured upon order
KUHN ZD,ZU,ZF1809
1809
| O. Ref. | Ref. | C | Grs. | A | B | A | B | E | M |
| 618000 | 1809 D | 5 | 850 | 12 | 600 | 283 | 118 | 1199B | M10 |
| 618001 | 1809 I | 5 | 850 | 12 | 600 | 283 | 118 | 1199B | M10 |
D Right
F Articles manufactured upon order
