Plough leaf springs
Complete leaf spring and individual sheets
Special, high elasticity steel with high capacity to recover initial geometry.
Specific integral heat treatment that provides each leaf with optimum characteristics.
The sheets are individually shot-blasted and painted before the set is assembled.
Epoxy paint with UVA protection.
Epoxy paint with UVA protection.
12500-7
Ref. | O. Ref. | C | A | B | Grs. | B | M | D |
12500-5 | 050706 | 4 | 770 | 170 | 16500 | 20 | M10 / 12 | |
12500-6 | 4 | 770 | 170 | 18700 | 18 | M10 / 12 | 30 | |
12500-7 | 060703 | 4 | 770 | 170 | 22100 | 18 | M10 / 12 |

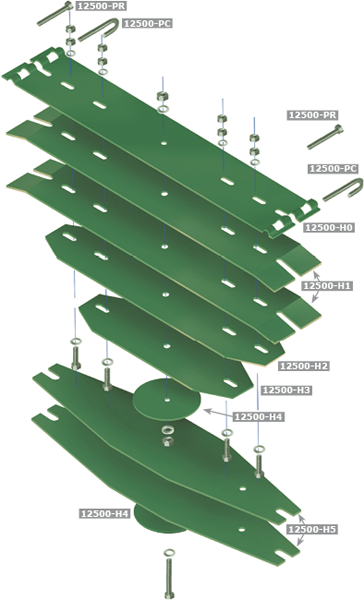

12500-5 = 12500-H0 + 12500-H1 (2) + 12500-H2 + 12500-H3 + 12500-H4 (2)
12500-7 = 12500-H0 + 12500-H1 (2)+ 12500-H2 + 12500-H3 + 12500-H4 (2) + 12500-H5 (2)
Initial reccommended distance for mounting leaf spring (when flexed): 70 cm. (Distance between the wheelbase)
Leaf combinations are developed in accordance with customer's requirements.
The number of layers per leaf spring shall depend on the ground characteristics (soil type)
KVERNELAND 12500
Ref. | O. Ref. | C | A | B | Grs. | B |
12500-H0 | 057063 | 4 | 770 | 140 | 3500 | 100 |
12500-H1 | 057064 | 4 | 760 | 140 | 3400 | 250 |
12500-H2 | 057065 | 4 | 625 | 140 | 2800 | 300 |
12500-H3 | 057066 | 4 | 440 | 140 | 2000 | 300 |
12500-H4 | 057067 | 4 | 700 | 140 | 700 | 200 |
12500-H5 | 057068 | 4 | 170 | 2800 | 200 |
Fixing
Ref. | Grs. | B |
12500-PC | 373 | 500 |
12500-PR | 306 | 500 |
